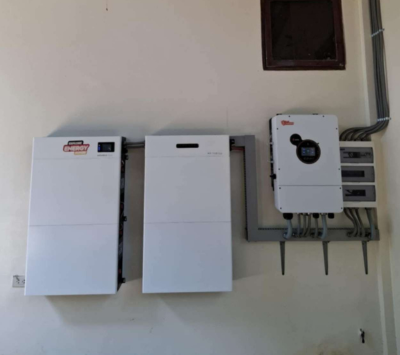

This is another example from our growing portfolio of customer installations, prominently featuring our advanced solar energy storage battery solutions. In the accompanying image, we can observe a highly capable solar power system, central to which are two of our LFP.6144.G2 battery modules.
Each LFP.6144.G2 unit utilizes Lithium Iron Phosphate (LiFePO4) cells, notable for their cobalt-free chemistry, and offers an energy capacity of 12.28kWh, providing a substantial 11.66kWh of usable capacity (DOD 95%). With two such modules in parallel, as seen in the photograph, this installation achieves a total energy capacity of 24.56kWh and a usable capacity of 23.32kWh. These batteries operate at a nominal 51.2Vdc within a range of 44.8Vdc to 57.6Vdc, ensuring stable power delivery. They are designed to handle significant power flows, with a maximum charge and discharge current of 300 Amps when paired with a suitable 15kW inverter. Each LFP.6144.G2 unit measures 600x1030x210mm and weighs 140kg.
An inverter is seamlessly integrated on the right side of the image, working in tandem with our solar energy storage battery units. This inverter is crucial for converting the stored DC electricity from the LFP.6144.G2 modules into AC power, making it readily available for the home or facility. The combination of our two LFP.6144.G2 battery packs and the integrated inverter forms a resilient and efficient solar energy system, capable of providing consistent, reliable power.
